Packaging CZ


manufactures and sales filling, capping and mixing machines for variety of packaging. Machinery produced by PRODUCT CZ, s.r.o. is suitable especially for filling products of food, cosmetic or chemical industry. The quality of engineering is under permanent control and development to meet all demands of customers and the changing market. All of our equipment is constructed from the highest quality materials with the highest quality workmanship , which makes our products competitive, both nationally and worldwide. Tube filling and sealing and cupfilling and capping machines.

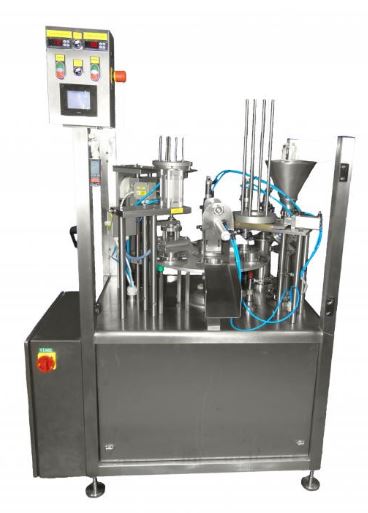

CUP FILLING & CAPPING MACHINE / PP 1200

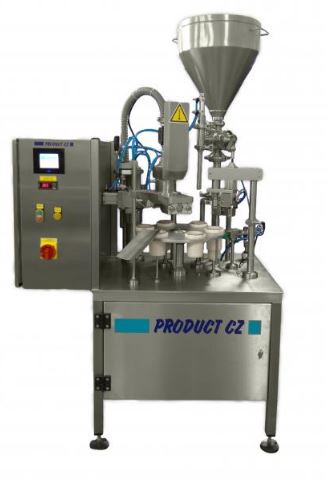

TUBE FILLING AND SEALING MACHINE / PPT - 600

PP 1200 is automatic rotary liquid or paste filling and capping compact designed for food, cosmetic or chemist industry. The product is filled into cups (plastic, aluminium or paper of various shapes and sizes), mostly of content up to 1,000 ml. Cups are capped with sealed lids (aluminium or plastic), lug or jammed on type caps or their combination.

A set of shaping parts for the cups is part of the equipment

Output: 1.000 - 1.200 pcs/h
Content of filling: 10 - 1.000 ml
Cups: plastic, aluminium or paper of various shapes and sizes
Caps: aluminium or sealed plastic lids, plastic jammed on or lug type lids
Input power: 400 V, 2 kW
Pressure air: 180 l/min, 6 bar
Dimensions: 1.280 x 890 x 1.750 mm

Semi-automatic liquid or paste filling and tube capping compact designed for food, pharmaceutical or chemist industry.

Setting of tubes is done manually. Orientation of the tube according to the orientation mark and to the filling station is part of the equipment.

Closing jaws are equipped with changeable marks for date and code marking. For laminated and plastic tubes the machine is equipped with cutting jaws for straight cut of the tube.

Capacity: about 600 pieces/hour
Filling volume: 1 - 250 ml
Tube diameter: 12 - 50 ml
Tube length: 50 - 200 ml
Tubes: plastic or laminate
Power: 400 V, 3.5 kW
Pressure air: 120 L/min, 6 bar
Dimensions: 950 x 800 x 1,750 mm

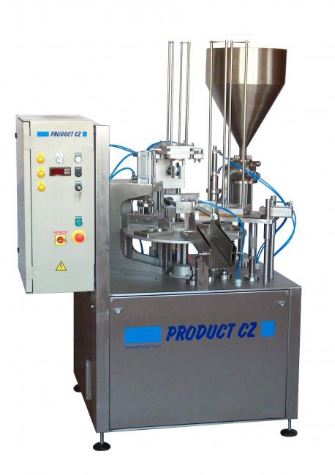

CUP FILLING & CAPPING MACHINE / PP 2000

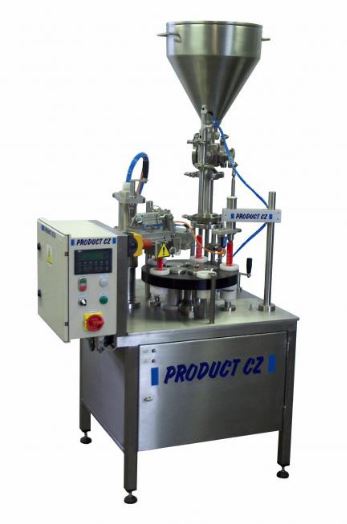

TUBE FILLING & SEALING / PPT-600/AL

PP 2000 is automatic rotary liquid or paste filling and capping compact designed for food, cosmetic or chemist industry. The product is filled into cups (plastic, aluminium or paper of various shapes and sizes), mostly of content up to 1,000 ml. Cups are capped with sealed lids (aluminium or plastic), lug or jammed on type caps or their combination.

A set of shaping parts for the cups is part of the equipment.

Transporting bell for offtake of the caps and scanning equipment with LCD display for batch setting is an above-standard part of the machinery.

Output: 1.500 - 1.800 pcs/h
Content of filling: 10 - 1.000 ml
Cups: plastic, aluminium or paper of various shapes and sizes
Caps: aluminium or sealed plastic lids, plastic jammed on or lug type lids
Input power: 400 V, 2.5 kW
Pressure air: 200 l/min, 6 bar
Dimensions: 1.260 x 1.170 x 1.750 mm

Semi-automatic liquid or paste filling and tube capping compact designed for food, pharmaceutical or chemist industry.

Setting of tubes is done manually. Orientation of the tube according to the orientation mark and to the filling station is part of the equipment.

Closing jaws are equipped with changeable marks for date and code marking.


Output: approximately 600 pcs/h
Capacity: about 600 pieces/hour
Filling volume: 1 - 200 ml
Tube diameter: 12 - 40 ml
Tube length: 50 - 200 ml
Tubes: aluminium
El. power: 400 V, 0.5 kW
Pressure air: 120 L/min, 6 bar
Dimensions: 1,000 x 850 x 1,750 mm

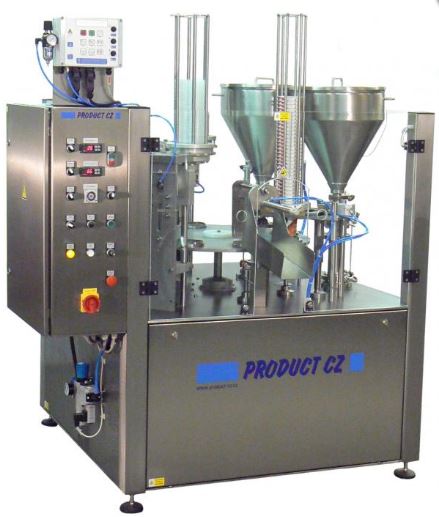

CUP FILLING & CAPPING MACHINE / PP 2400

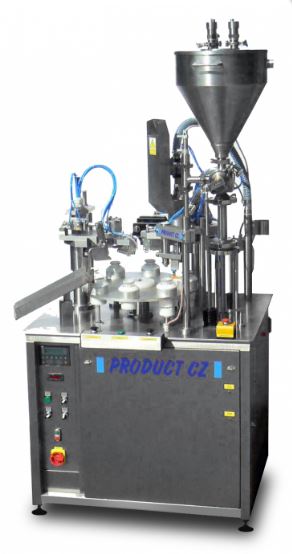

TUBE FILLING AND SEALING MACHINE / PAT-1500

PP 2400 is automatic rotary liquid or paste filling and capping compact designed for food, cosmetic or chemist industry. The product is filled into cups (plastic, aluminium or paper of various shapes and sizes), mostly of content up to 1,000 ml. Cups are capped with sealed lids (aluminium or plastic), lug or jammed on type caps or their combination.

Machinery can be equipped by 1 or 2 filling stations and 1 or 2 stations for lid setting.

A set of shaping parts for the cups is part of the equipment.

Transporting bell for offtake of the caps and scanning equipment with LCD display for batch setting is an above-standard part of the machinery.

Output: do 2.400 pcs/h
Content of filling: 10 - 1.000 ml
Cups: plastic, aluminium or paper of various shapes and sizes
Caps: aluminium or weld on plastic lids, plastic jammed on or lug type lids
Input power: 400 V, 3.0 kW
Pressure air: 300 l/min, 6 bar
Dimensions: 1.450 x 1.230 x 1.750 mm



Semi-automatic liquid or paste filling and tube capping compact designed for food, pharmaceutical or chemist industry.

Setting of tubes is done manually. Orientation of the tube according to the orientation mark and to the filling station is part of the equipment. Closing jaws are equipped with changeable marks for date and code marking. For laminated and plastic tubes the machine is equipped with cutting jaws for straight cut of the tube

Capacity: 1,500 pieces/hour
Filling volume: 1 - 250 ml
Tube diameter: 12 - 50 ml
Tube length: 50 - 200 ml
Tubes: plastic, laminate or aluminium
El. power: 400 V, 1.5 (4.5) kW
Pressure air: 200 L/min, 6 bar
Dimensions: 1,100 x 1,350 x 1,750 mm

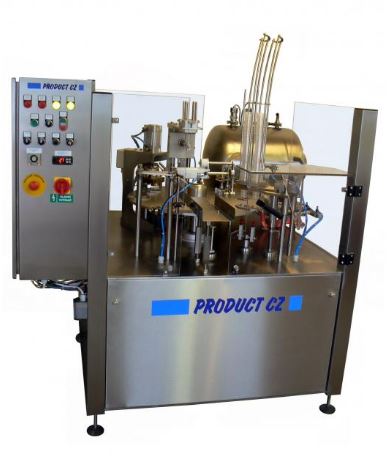

CUP FILLING & CAPPING MACHINE / PP 4800

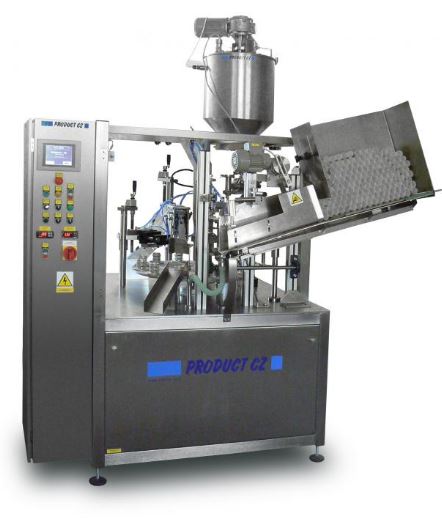

TUBE FILLING AND SEALING MACHINE / PAT-2500

PAK 4800 is automatic rotary liquid or paste filling and capping compact designed for food, pharmaceutical or chemist industry. The product is filled into cups (plastic, aluminium or paper of various shapes and sizes), mostly of content up to 1,000 ml. Cups are capped with sealed lids (aluminium or plastic), lug or jammed on type caps or their combination.

Machinery can be equipped by 1 or 2 filling stations and 1 or 2 stations for lid setting.

A set of shaping parts for the cups is part of the equipment.

Transporting bell for offtake of the caps and scanning equipment with LCD display for batch setting is an above-standard part of the machinery.

Output: do 4.800 pcs/h
Content of filling: 10 - 1.000 ml
Cups: plastic, aluminium or paper of various shapes and sizes
Caps: aluminium or weld on plastic lids, plastic jammed on or lug type lids
Input power: 400 V, 4.0 kW
Pressure air: 400 l/min, 6 bar
Dimensions: 1.750 x 1.600 x 1.750 mm



PAT 2500 is designed for filling liquid and paste products of food, pharmaceutical or chemist industry into plastic, laminated or aluminium tubes. Tubes are closed by hot air or by folding.

Setting of the tubes is done automatically from the feeder. Orientation of the tube according to the orientation mark and to the filling station is part of the equipment. Closing jaws are equipped with changeable marks for date and code marking. For laminated and plastic tubes the machine is equipped with cutting jaws for straight cut of the tube.

Isolated filling funnel and option for mixing the product in the funnel is above-standard.

Capacity: 2,000 - 2,500 pieces/hour
Filling volume: 1 - 250 ml
Tube diameter: 12 - 50 ml
Tube length: 50 - 200 ml
Tubes: plastic, laminate or aluminium
El. power: 400 V, 1.5 (4.5) kW
Pressure air: 250 L/min, 6 bar
Dimensions: 1,450 x 1,350 x 1,750 mm

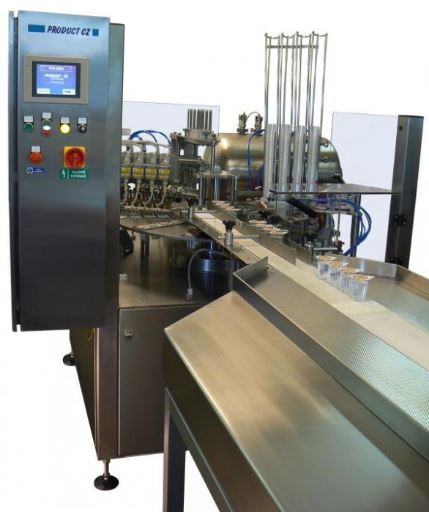

CUP FILLING & CAPPING MACHINE / PP 9600

TUBE SEALING MACHINE / ZT 300

PAK 9600 is automatic rotary liquid or paste filling and capping compact designed for food, pharmaceutical or chemist industry. The product is filled into cups (plastic, aluminium or paper of various shapes and sizes), mostly of content up to 300 ml. Cups are capped with sealed lids (aluminium or plastic), lug or jammed on type caps or their combination.

Machinery can be equipped by 1 or 2 quadruple filling stations and 1 or 2 quadruple stations for lid setting.

A set of shaping parts for the cups is part of the equipment.

Transporting bell for offtake of the caps and scanning equipment with LCD display for batch setting is an above-standard part of the machinery.

Output: upto 9600 pcs/h
Content of filling: 10 - 300 ml
Cups: plastic, aluminium or paper of various shapes and sizes
Caps: aluminium or sealed plastic lids, plastic jammed on or lug type lids
Input power: 400 V, 4.0 kW
Pressure air: 400 l/min, 6 bar
Dimensions: 2.250 x 1.900 x 2.050 mm



Semiautomatic tube sealing machine for laminate and plastic tubes.

Inserting and taking out of the tubes is manual. The machine is composed of the tube sealing and of the foil end cutting. The closing jaws are equipped with changable characters for marking data and code.

As optional function is possible to equippe the machine with the cutting station of the Euroslot.

Output: approximately 300 pcs/h
Diameter of tubes: 12 - 50 ml
Length of tubes: 50 - 250 ml
Tubes: plastic or laminated
Input power: 400 V, 3.5 kW
Pressure air: 170 l/min, 6 bar
Dimensions: 1.200 x 600 x 1.300 mm
