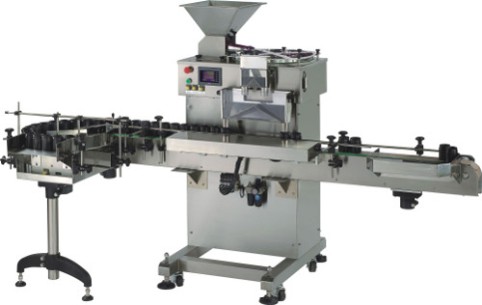

Automatic / Capsule Counting Machine PC 415

The PC 415 Auto pill counter machine is an automatic version of the counting machine for tablets, capsules etc. with a maximum output of 1000 tablets per minute, it is supplied to companies with medium scale production runs. The product to be counted is placed in the hopper were it is vibrated onto a disc before being separated and dropping individually through an infra-red beam which accurately counts them into a containers on a conveyor. You can set the amount to be counted and the number of batches to be run on a touch screen display.


Pill Counter machine for all types of counting applications

Pill Counter machine for counting Pills
Pill Counter machine for counting capsules
Pill Counter machine for counting caplets
Counting machine for counting sweets
Counting machine for counting buttons
Counting machine for counting beads


Automatic Tablet / Capsule Counting Machine PC-415 is designed for accurate counting and bottle filling of all kinds of tablets and capsules.

FEATURES:

• PLC control system. Easy operation by Touch screen
• Highly accurate Counting Speed : 600~1000 pcs/min
• Flap Nozzle for Non-Stop counting
• Dust Accumulating device enhance the counting accuracy
• Japan made “ Keyence” high accuracy fiber sensor
• Tool Free for counting all types tablets and capsules
• Easy control variable counting speed
• Memory slot for counting recall
• Advanced stainless steel GMP design
• Choice of funnel sizes to suit container neck
• Easy manual adjustment of hopper

SPECIFICATIONS:

• Speed: 600~1000 pcs/min
• Tablet size: 5~16mm in diameter
• Bottle size: 30~200mm in diameter
• Accuracy: ±0.1-0.2%
• Power Supply: single phase 110/220VAC, 50/60Hz
• Machine Dimensions: (L)760mm (W)550mm (H)740mm
• (For reference only, the real drawing should be considered as final.)
