Tablet Counter PC 1000

Tablet Counter

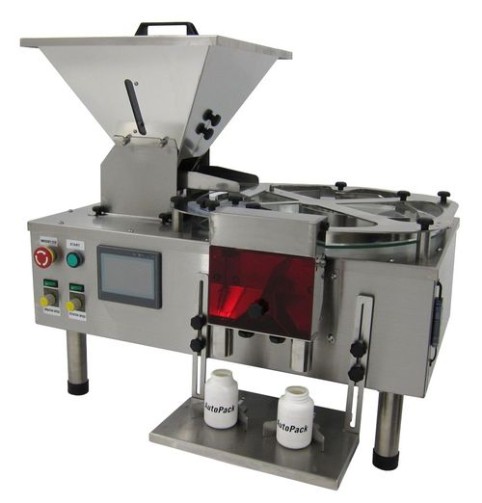

Tabletop Tablet / Capsule Counting Machine PC 1000

The PC 1000 is one of our tablet counters which is a bench or table top counting machine for tablets, capsules etc. with a maximum output of 1000 tablets per minute, it is supplied to larger hospital pharmacies and companies with small to medium scale production runs. It has been used for other applications so please ask about yours. The product to be counted is placed in the hopper were it is vibrated onto a disc before being separated and dropping individually through an infra-red beam which accurately counts them into a container. You can set the amount to be counted and the number of batches to be run on a digital display.

Tablet Counters for counting Pills
Tablet Counters for counting capsules
Tablet Counters for counting caplets
Counting machine for counting sweets
Counting machine for counting buttons
Counting machine for counting beads

Tabletop Tablet / Capsule Counting Machine PC-1000 is design for accurate counting and bottle filling of all kinds of tablets and capsules.

FEATURES:

  • PLC control system. Easy operation by Touch screen
  • Highly accurate Counting Speed : 600~1000 pcs/min
  • Flap Nozzle for Non-Stop counting
  • Dust Accumulating device enhance the counting accuracy
  • Tool Free for counting all types tablets and capsules
  • Easy control variable counting speed
  • Memory slot for counting recall
  • Advanced stainless steel GMP design
  • Choice of funnel sizes to suit container neck
  • Easy manual adjustment of hopper


SPECIFICATIONS:

  • Speed: 600~1000 pcs/min
  • Tablet Size 5mm 160,000 Tablets / hour
  • Tablet Size 10mm 90,000 Tablets / hour
  • Capsule Size # 1 50,000 Capsules / hour
  • Capsule Size # 4 70,000 Capsules / hour
  • Bottle size: 30~200mm in diameter
  • Accuracy: 0.1-0.2%
  • Power Supply: Single Phase 110 or 220VAC, 50/60Hz
  • Machine Dimensions: (L)760mm (W)550mm (H)740mm
