Tablet Counter PM 600

Tablet Counter

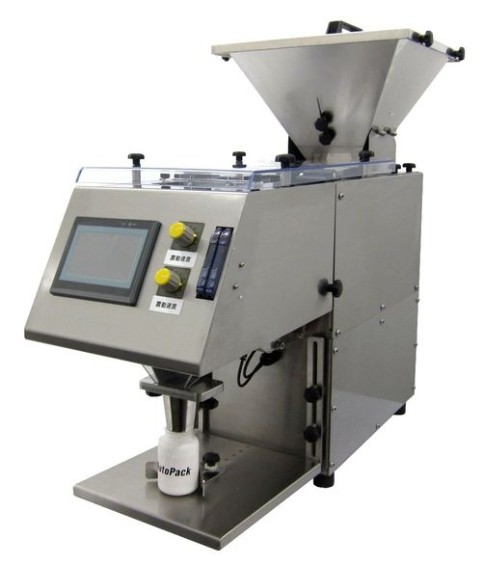

Tabletop Tablet / Capsule Counting Machine PM 600

The PM 600 tablet counter machine is a small and portable counting machine for tablets, capsules etc. with a maximum output of 600 tablets per minute, it is primarily used in hospital pharmacies and companies with small scale production runs. It has been used for other applications so please ask about yours. The product to be counted is placed in the hopper were it is vibrated around a plastic scroll before dropping individually through an infra-red beam which accurately counts them into a container. You can set the amount to be counted and the number of batches to be run on a digital display.

Tablet Counting machine for counting Pills
Tablet Counting machine for counting capsules
Tablet Counting machine for counting caplets
Counting machine for counting sweets
Counting machine for counting buttons
Counting machine for counting beads

PM-600 counter is designed to feed and count any size,shape or quantity of tablet and capsule without change parts.
Simple to operate and easy to clean.

FEATURES:

  • Variable speed control for twin tracks
  • Stainless steel outlet funnel and clear plastic dust cover
  • Tool-free release for counting different products
  • Front mounted touch screen control panel
  • Count display with reset
  • Height adjustable support stand
  • Tabletop or conveyor mounting
  • Frame and component made of SUS#304 and ion anodized aluminum, all meet cGMP requirement
  • 1.5L Product hopper (20L available)


OPTIONS:

  • Drugs bag pre-filling machine
  • Conveyor mounting


SPECIFICATIONS:

  • Counting Speed: 300~600 pcs/min
  • Power: Single Phase 110 or 220VAC, 50/60Hz
  • Air requirement: 2 CFM at 90 PSI
  • Bottle Size: 48mm~100mm ; Max Height 116mm
  • Product Range: 2mm-40mm
  • Machine Dimensions: (L)390mm (W)826mm (H)761.5mm
  • (For reference only, the real drawing should be considered as final.)

.
.
